A room can look finished and still sound unsettled. Voices hang in the air, footsteps arrive from every direction, and the ceiling seems to do little except frame the lighting. In large offices, retail halls, terminals, and public interiors, that problem is often tied to long reverberation rather than to a single loud machine.

Suspended baffles are one way to work with that volume without closing it behind a flat surface. They hang below the structural zone, creating repeated vertical or linear elements. The result can soften the visual scale of a high room, keep services relatively open, and add useful acoustic treatment when the system is designed with suitable faces and backing.

The important detail is that not every baffle works in the same way. Profile depth, spacing, perforation, acoustic infill, suspension height, and the rest of the room all affect the result. Acoustic baffles are a system choice, not a decorative shape with a guaranteed sound number.

What sound baffles actually do in an open ceiling

Suspended linear panels, not just decoration

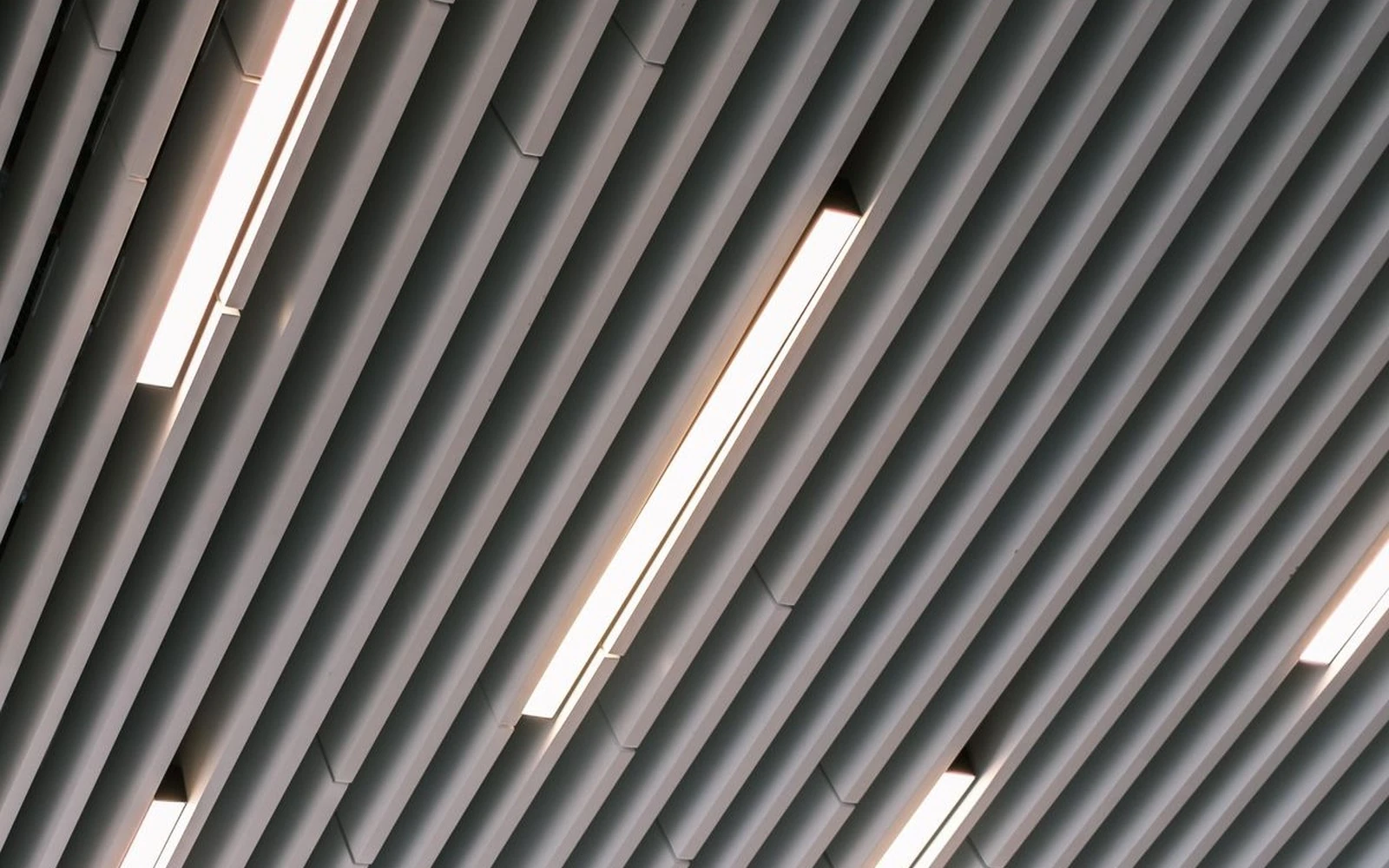

TUODELI's metal baffle ceiling range is built around suspended linear metal panels offered in different sizes, finishes, and configurations. The published product description links the open structure with acoustic performance, air circulation, lighting integration, and easy maintenance. It also identifies offices, retail spaces, airports, and other public areas as common applications.

That description explains the architectural role. A row of baffles establishes direction and rhythm while leaving gaps between the profiles. Depending on viewing angle and depth, those gaps can reveal the plenum, partially mask it, or make the services visually recede. The ceiling still reads as a designed plane even though it is not continuous.

The acoustic role needs one more layer. Bare solid metal is reflective. A baffle can scatter reflections because of its shape and spacing, but meaningful absorption usually depends on perforated surfaces, absorptive backing, or another tested treatment. When acoustic ceiling baffles are proposed for a target reverberation time, the quoted build-up and laboratory result matter more than the word "acoustic" in a product name.

How the system works without closing the room

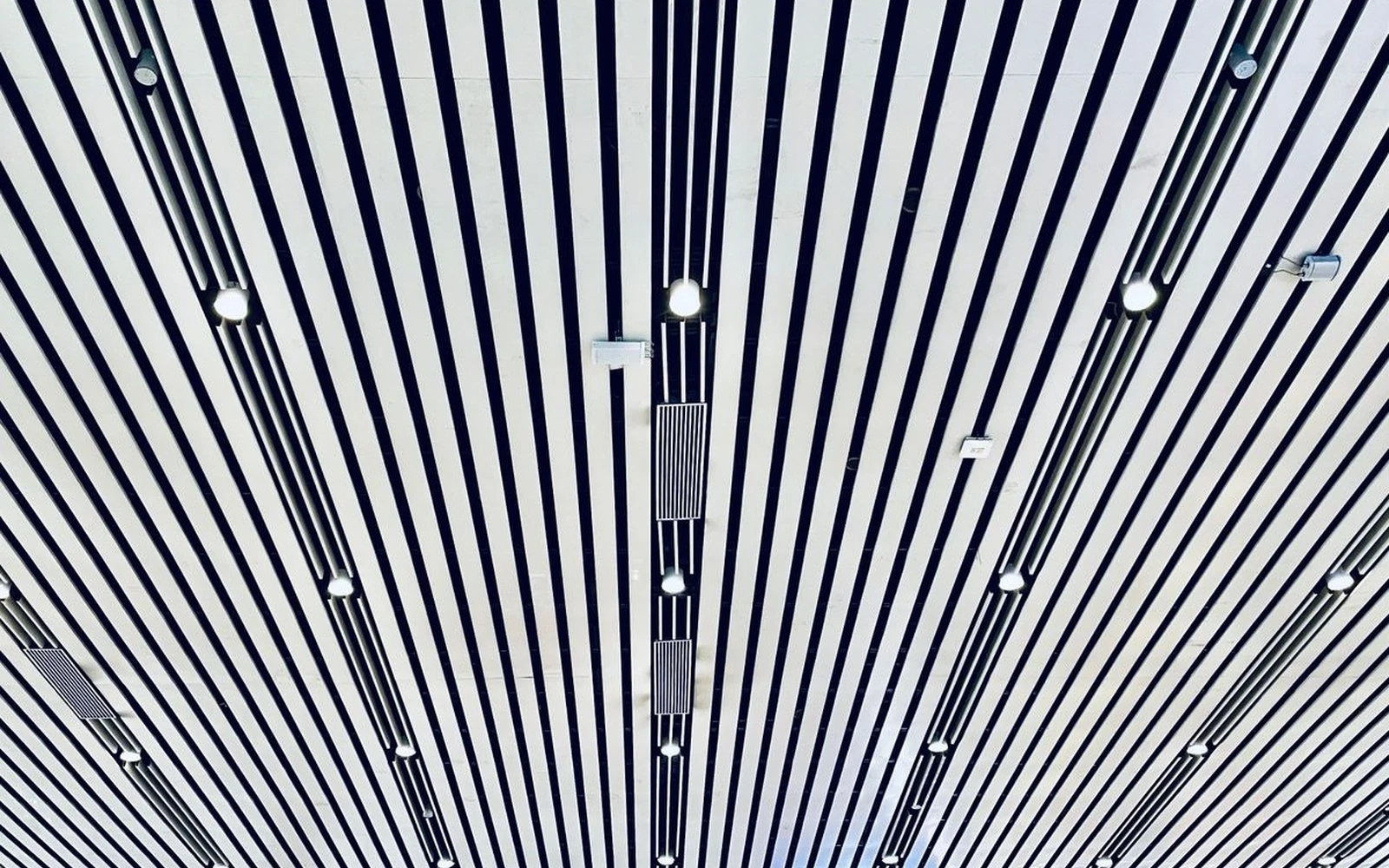

An open baffle layout exposes more faces to the sound field than a single flat plane. Sound can meet the sides and lower edges, pass through perforations, and reach absorptive material placed within or behind the profiles. Waves also travel through the gaps, so the deck, ducts, and other surfaces above remain part of the room's acoustic behavior.

This is why a baffle ceiling is not the same as a sealed acoustic barrier. It can help manage reverberation within a room; it does not automatically stop sound passing to an adjacent room or through an open plenum. Privacy, equipment noise, and room-to-room isolation may need barriers, full-height partitions, duct treatment, or separate mechanical measures.

Why choose baffles instead of a continuous ceiling

Acoustic treatment and visual openness

Continuous tiles create a clear finished plane and can carry strong absorption across a broad area. Baffles produce a different balance. They preserve height, expose selected services, and create a directional ceiling that changes as people move through the room. That makes them useful where a fully enclosed look would feel heavy or interfere with the intended architecture.

A technical metal-ceiling guide groups baffles with beam, open-cell, and plenum-mask systems. It describes baffles as a linear way to partially conceal the structure above. It also notes that open systems can accommodate air and light services while changing how much of the plenum is visible from normal viewing angles. Those are practical reasons to choose the form, quite apart from its acoustic label.

The ceiling type should still follow the room. A low meeting room that needs strong speech privacy may be better served by a continuous acoustic system. A tall concourse with visible services, long sightlines, and frequent maintenance may gain more from an open arrangement. TUODELI's broader metal ceiling systems make that comparison possible before the project is committed to one visual language.

Air circulation and lighting integration

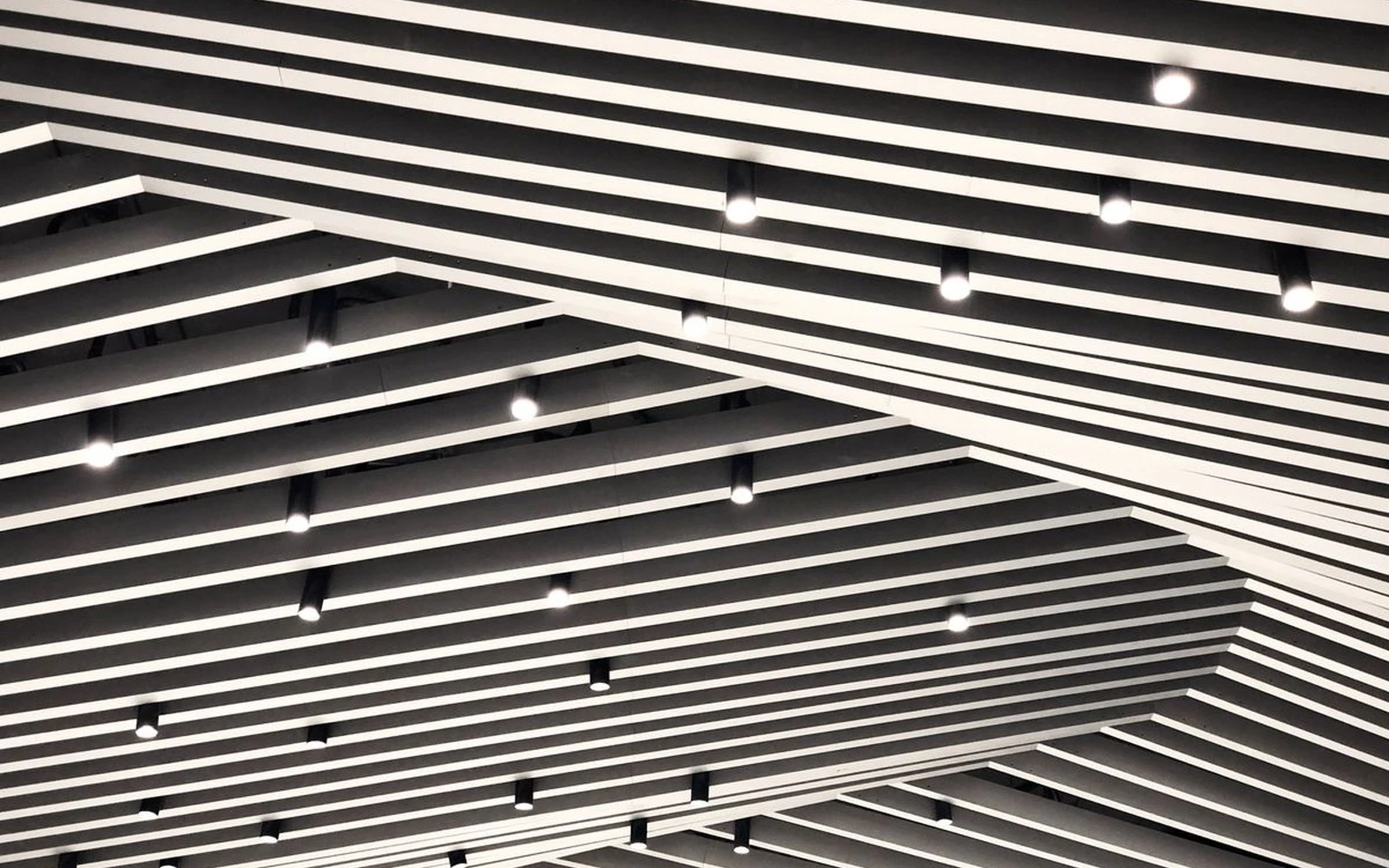

Open gaps make it easier to coordinate air movement, sprinklers, track lighting, linear luminaires, and selected service runs. Easier does not mean unplanned. A luminaire that is wider than the intended gap can interrupt the rhythm, while a diffuser placed too high may distribute air differently from the mechanical design assumption.

The reflected ceiling plan needs to show profile direction, spacing, suspension level, luminaire width, sprinkler locations, access routes, and major ducts. It is also worth checking the view from entrances and escalators. A layout that masks services from the floor may reveal them from an upper level.

For projects that need a closed, individually removable plane, tile ceiling systems may be more direct. Where a regular open grid suits the architecture better than long parallel lines, open cell ceilings provide another route.

The layout variables that change performance

Spacing and depth

Spacing controls more than appearance. Narrow gaps create a denser plane and expose more profile surface within a given area. Wider gaps reduce material quantity and keep the plenum open, but they may reveal more services and provide less treated surface. The right choice comes from the acoustic model, sightlines, service layout, and budget together.

The technical guide gives a useful starting relationship: metal baffles are often spaced at least as far apart as their depth. Its example places 4-inch-deep profiles at 4 or 6 inches apart. That is not a universal rule or a TUODELI product limit, but it shows why depth and spacing should be reviewed as one visual proportion. A deeper profile can mask the plenum from oblique views even when the opening remains generous.

Suspension height changes the result again. Lowering the profiles can create a more intimate plane and leave room for services above. Raising them close to the deck preserves maximum headroom but may make coordination and installation tighter. Edge conditions also need a decision: should rows stop cleanly at a perimeter, pass through an open boundary, or align with another ceiling type?

Profile, perforation, and acoustic backing

Profile shape affects the visible line and the amount of exposed surface. U-shaped, rectangular, round, and V-shaped forms do not cast the same shadow. Mixed depths can create stronger relief, while a single repeated profile gives a calmer result. Curves and transitions need suspension details that can hold the intended geometry without twisting the rows.

Perforated metal panels can provide moderate to high absorption when paired with the right backing. Hole pattern, percentage of open area, non-woven fabric, and fibrous batt are major variables. One technical guide cites NRC 0.70 for a perforated panel with black fabric and NRC 0.90 when fibrous batt is added. Those values belong to the described tested constructions, not to every metal panel, so a project should request data for the proposed acoustic baffles.

Finish choices can also alter what the ceiling communicates. White and light metallic surfaces keep a space bright; black profiles can visually disappear into a dark plenum; wood-look finishes add warmth without using solid timber. The acoustic specification should stay attached to the finish and perforation selection so the appearance is not approved separately from performance.

Where sound baffles make the most sense

Offices, retail, airports, and public zones

The form works well in spaces where people move through a large shared volume and the ceiling must coordinate many systems. Offices use it above collaboration zones and circulation routes. Retail interiors use direction and color to lead the eye. Airports and transport halls benefit from durable, repeatable modules that can work around lighting and service bands.

It is less convincing where a small room needs a simple low ceiling, where the deck above must be completely hidden, or where room-to-room isolation is the main acoustic problem. In those cases, a continuous ceiling or a combined system may be more effective. A short mock-up can reveal whether the chosen spacing gives the intended view before hundreds of profiles are ordered.

How TUODELI’s baffle range fits

TUODELI has more than 30 years of experience with acoustic metal ceilings and related wall systems. Its published process includes raw-material checks, perforation and forming inspection, surface review before and after coating, pattern verification, random testing, rework control, and final inspection. For a linear ceiling, those checks support consistent profile dimensions, hole patterns, finish, and row-to-row appearance.

The project brief should include room dimensions, ceiling height, profile direction, desired depth and spacing, service locations, acoustic target, finish, and expected access. Request a section detail and a small group of adjacent profiles rather than judging a single loose piece. The repeated gap is part of the product.

When the drawings are ready, share the baffle layout with TUODELI for system options, samples, and coordination feedback. Asking for "the best" profile without the room around it is less useful.

Conclusion

Baffles work by treating the ceiling as an open three-dimensional field. Their shape and repetition organize the room; perforation and absorptive backing can control reflected sound; the gaps keep air, light, and services connected to the space.

Good acoustic ceiling baffles are therefore selected as a tested build-up and a coordinated layout. Profile depth, spacing, suspension height, finish, and the visible plenum all belong to the decision. TUODELI's range offers the sizes, finishes, configurations, and manufacturing checks needed to develop that system around an actual project.

FAQ

Q1: Do acoustic baffles soundproof a room?

A1: No. They are mainly used to reduce reverberation and shape sound within the room. Sound isolation between rooms depends on walls, barriers, doors, penetrations, ducts, and the degree to which the plenum remains open.

Q2: How much space should there be between baffles?

A2: There is no single spacing for every project. Depth, ceiling height, sightlines, acoustic treatment, service layout, and budget all affect the choice. A technical starting point is to compare the gap with the profile depth, then confirm the result through drawings and acoustic data.

Q3: Is a metal baffle ceiling suitable for airports and retail spaces?

A3: Yes, when the selected construction matches the acoustic, maintenance, fire, and service requirements. The open linear format suits large public interiors, but the final profile, backing, spacing, suspension, and finish need project-specific review.
