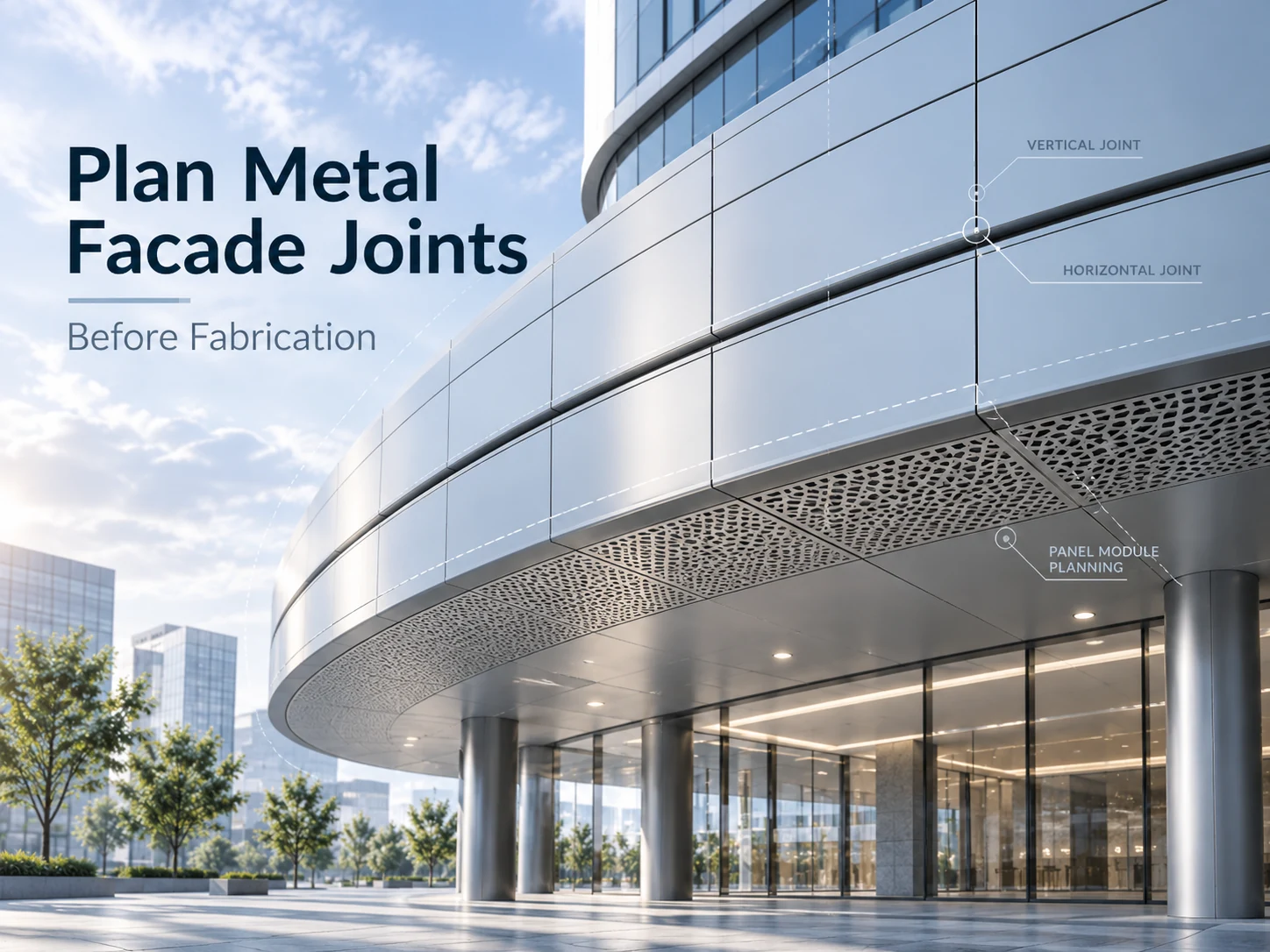

Plan Metal Facade Joints Before Fabrication
Metal facade panels are often selected for their clean lines and durable finish. The joints between those panels are where the system's movement, weather resistance and visual discipline are tested. A joint that is too small or too rigid may look correct on a drawing but fail once the facade experiences temperature change, structural movement or installation tolerance. TUODELI manufactures metal facade panels in single-skin, composite, perforated and corrugated ranges. For a metal facade project, joint planning should be completed before fabrication: the joint and fixing design must accommodate movement without transferring avoidable stress into the panel or substrate.
Joint planning for single skin facade panels and composite facade panels begins with the movement path, not the panel drawing. The sequence below shows where fixed points, sliding points and interface checks have to be resolved.
Movement Is a Design Load, Not a Site Adjustment
What expands and contracts
Every metal facade panel changes dimension with temperature. The amount depends on the material, the panel length, the colour and solar gain, the orientation and the expected temperature range. A dark panel on a west-facing elevation may experience a larger surface temperature change than a light panel in a shaded location. A nominal panel size is not the same as its installed condition. The designer should also consider how the panel is restrained at the corners. A panel fixed on two adjacent edges may behave differently from one fixed at a single central point. The fixing detail should show the intended movement direction and the edge that remains free. The panel schedule should also show which edges are visible and which are fixed or covered. A visible edge may need a tighter joint and a more controlled fixing detail, while a covered edge can accept a different tolerance. One joint detail does not fit every edge when the consequences are different.
Fixed and sliding points
The fixing system must allow the panel to move without transferring stress to the fasteners, the substrate or the adjacent panels. A clear fixed point and sliding points should be defined for each panel or module. The location of those points affects the joint width, the support design and the installation sequence. If every fastener is fixed, the panel has no way to relieve movement; if the movement is not controlled, the facade can develop distortion, noise or joint failure. The edge distance and fastener position also affect how the panel moves. A fastener placed too close to an edge can create a local restraint or stress concentration. The approved detail should show the fastener location, the slot or movement allowance and the support condition.
Joint Planning Before Fabrication
Joint width and structural movement
The joint and fixing design must be checked against the calculated panel movement, installation tolerance, structural interfaces and the movement capacity of the sealant or closure system. Movement may be shared across multiple joints, so the required allowance is a system result, not a fixed rule. Substrate movement and the interfaces at windows, doors, corners and parapets also belong in the review. Movement paths need identification before panel lengths are finalised. The review should also identify where movement is not free to occur. A window frame, a rigid corner, a parapet upstand or a change in substrate can become an unintended fixed point. If several restraints act on the same panel, the joint at the opposite edge may need a wider allowance or a different fixing detail. The design should show the intended movement path from the fixed point to the release point, not only the nominal joint width.
Material, colour and panel size
Material and finish influence both the movement and the visual result. Aluminium, steel and other metals expand at different rates. Colour affects solar gain. Panel size affects the total movement that must be accommodated. These variables should be considered together with the joint pattern. A facade that is designed only for appearance may create a joint layout that is difficult to seal, drain or replace.
Interfaces and Verification
Transitions at windows, corners and parapets
The details must separate panel movement from the frame, define the drainage path and close the transition against water. At corners, movement direction and the fixed side need to be defined. Parapets need both movement and water-management checks.
What to check in drawings and samples
Before fabrication, review the panel layout, joint widths, fixing points, movement calculations and interface details. Check that the joint pattern is consistent with the approved appearance and that the sample reflects the actual joint, finish and fixing condition. The installation sequence should identify what must be inspected before panels are fixed and what records should be kept. A sample that shows only the surface finish does not prove that the movement strategy is correct. The sample review should include a joint, a fixing condition and a representative interface. A flat material sample can confirm colour and finish, but it cannot show whether the joint drains, whether the panel can move or whether the adjacent frame constrains the facade. The approved sample should be photographed with the joint and fixing visible. The installation team should also know what to inspect before the next panel is fixed and what condition would require the work to stop for review.
Conclusion
Metal facade joints are not a detail added after the panel layout. They are the mechanism that lets the facade move, drain and remain visually controlled. Material, colour, panel size, fixed and sliding points, structural movement and interface conditions all shape the joint design. Resolving those issues before fabrication reduces the risk of field modifications and premature failure. The joint plan should be reviewed against the structural movement path: send the elevation, fixing concept and joint schedule before panel lengths are fixed.
FAQs
Q1: How do I know if a facade joint is wide enough?
A1: The joint must accommodate the expected panel movement, installation tolerance and structural movement at the relevant interface. The calculation depends on the material, panel size, temperature range, colour and fixing arrangement. A generic width should not replace a project-specific check.
Q2: Can sealant alone handle thermal movement?
A2: Sealant can accommodate limited movement, but it is not a substitute for a fixing strategy that allows the panel to move. If the joint or fixing is too rigid, the movement will still transfer to the panel, fasteners or substrate even when sealant is present.
Q3: Should every panel have the same fixed point?
A3: Not necessarily. The fixed and sliding points should follow the structural and visual logic of the facade. Some panels may be fixed at one edge, others may be centred, and some interfaces may require a different strategy. The movement path needs to be clear on the drawing.
