Custom ceiling work often starts with a strong visual idea: a curved lobby ceiling, a baffle rhythm through a corridor, a patterned open cell feature, or custom metal ceiling panels shaped around lighting and air diffusers. The risk comes later, when that idea has to become production drawings, panels, trims, hangers, openings, packing lists, and site installation steps. Metal ceiling shop drawings are the bridge between design intent and factory production.

For standard ceilings, a contractor can often work from typical details. Custom work is different. Panel sizes, perforation borders, suspension type, access zones, finish matching, and edge conditions all have to be fixed before the factory starts. Once the metal is cut, punched, bent, coated, packed, and shipped, changes are slower and more expensive. That is why early drawing review is not paperwork. It is cost control.

Shop Drawings Turn a Ceiling Concept Into Buildable Parts

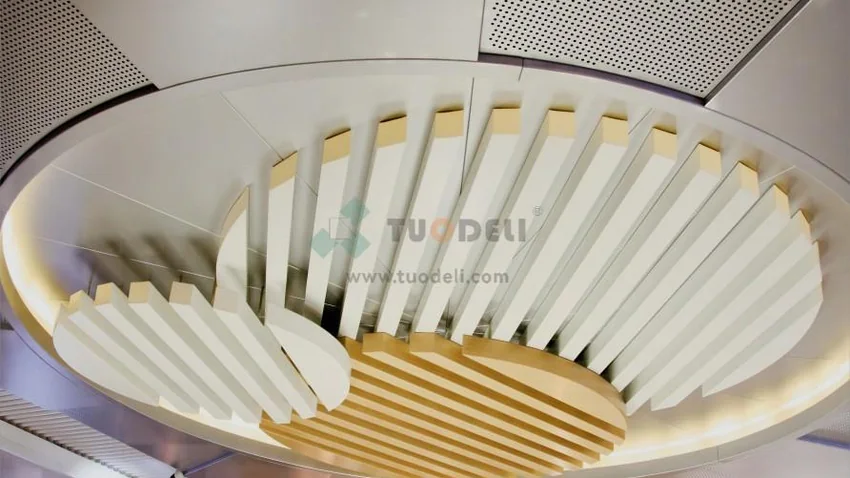

A custom ceiling design has many visible and hidden decisions. The visible side includes module size, joint width, baffle spacing, curve radius, panel direction, perforation pattern, and color. The hidden side includes hanger locations, suspension compatibility, fixing details, plenum access, support around lights, and coordination with air diffusers, sprinklers, speakers, cameras, and signage. A strong custom ceiling design also leaves enough tolerance for real site dimensions.

Metal ceiling shop drawings connect these items. They show how the architectural ceiling system fits the actual room, not just an ideal drawing. A drawing should answer practical questions: Where does the first panel start? Which borders are equal? Where do trims change direction? Which panels are removable? How are large panels packed and labeled? Which accessories belong with each area? The architectural ceiling system should be readable to both the factory and the site team.

TUODELI supplies a broad metal ceiling systems range, including tiles, baffles, open-cell ceilings, expanded ceilings, special ceilings, and wall panels. When a project mixes several ceiling families, the shop drawing stage becomes even more important because the transition between systems is often where site mistakes happen.

Fabrication Drawings Reduce Expensive Changes

Ceiling fabrication drawings should lock down the details that cannot be guessed on site. Perforated panels are a clear example. Hole size, open area, pattern direction, solid borders, and backing material can affect both appearance and acoustic performance. A perforated panel with only black nonwoven backing absorbs sound differently from one with additional fibrous batt. The selected pattern may also affect edge strength if perforations run too close to a bend or cut edge.

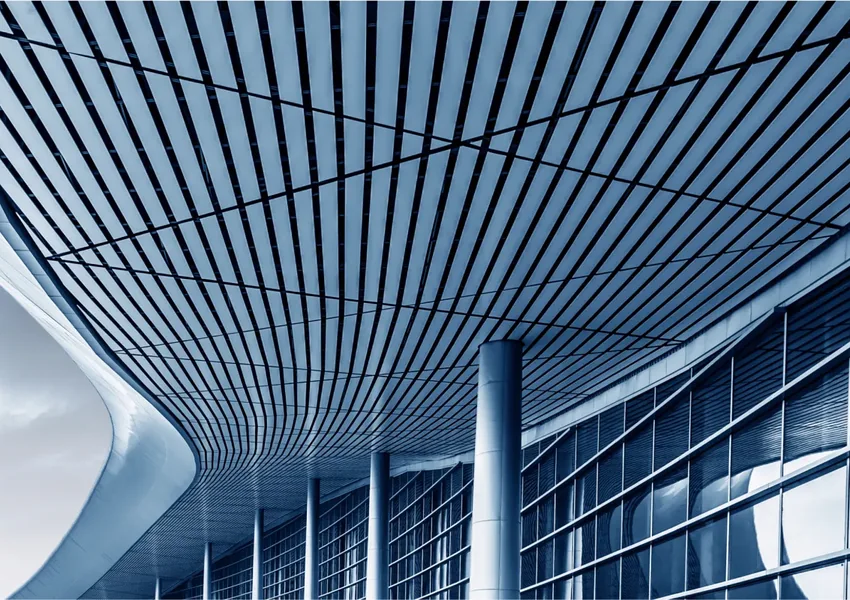

Curves and large panels also need careful definition. Curved metal ceiling systems may use one-directional, two-directional, or concealed curved approaches. Vaults, valleys, and minimum radius requirements have to be discussed before production. Large planks and custom panels can create beautiful long lines, but they also require careful support, packing, and installation sequencing.

These are not details that should be solved by a site crew with a grinder and a deadline. Good metal ceiling shop drawings reduce improvisation. They give the factory a clear route and give the commercial team a way to price custom work honestly.

Access, Fixtures, and the Plenum Need Space in the Drawing Review

Metal ceilings often hide HVAC returns, ducts, wiring, pipes, and other services in the plenum. Some systems provide full access at nearly any point, while others are point-accessible or progressive, meaning panels must be removed in sequence. That choice should match the building's maintenance needs. A ceiling above a retail zone with frequent lighting changes needs a different access strategy from a quiet office corridor.

Fixture support has to be shown clearly. Lights, vents, and fans should not rely on panels to carry weight. Recessed fixtures may need support bars, extra hanger wires, or subframes. If those supports are not reflected in the drawing package, the installer may cut panels first and solve the structure later. That is a common path to distortion, callbacks, and delayed acceptance.

Open plenum products, such as combination open cell ceiling systems, need extra attention to sight lines. The ceiling is not fully closed, so the viewer may see lighting, suspension, and services from below. Shop drawings should check not only the overhead layout but also the main viewing angles in public zones.

Finish Matching Belongs in the Drawing Package

Custom metal ceiling panels often combine different formed parts: flat panels, perimeter trims, curved pieces, suspension faces, baffles, and accessories. Finish matching should not be left until delivery inspection. The drawing and approval package should name the finish, gloss level, sample reference, component scope, and whether all visible parts come from the same finish control route.

Powder coating is applied after the metal part is formed, then cured into a uniform finish. Coil coating is applied before forming. Baked enamel is often used for interior components. Anodized finishes integrate with aluminum and can be durable, but color range is more limited. The right route depends on the product shape, exposure, color target, and project budget. These finish notes should be tied back to the ceiling fabrication drawings before approval.

For a custom special ceiling project, finish approval should include real profiles where possible, not only flat chips. A flat sample may hide how a color behaves on a bend, perforated edge, or curved trim. That small step can prevent a very visible mismatch after installation.

What Buyers Should Ask Before Production Starts

Before approving production, buyers should look for four things. First, the drawing must match the latest architectural and MEP information. Second, each ceiling zone should have clear product type, panel size, fixing method, finish, and access logic. Third, custom parts should have labels that match packing and installation. Fourth, the supplier should be able to explain which details are standard and which ones may affect lead time or cost.

For linear work, strip ceilings may need panel direction, length, end joints, carrier spacing, and perimeter treatment clarified. For open cell or baffle work, spacing and viewing angle matter. For tile ceilings, borders, cutouts, and plenum access often decide whether the finished ceiling looks clean.

A useful supplier review does not only confirm that custom production can be done. It checks whether the drawings are complete enough for factory work and clear enough for site installation. TUODELI can support projects where the architect wants a strong visual result and the contractor still needs practical panels, trims, and accessories that fit together on site.

FAQ

Q1: When should metal ceiling shop drawings be approved?

A1: They should be approved after architectural, MEP, lighting, and access details are coordinated but before cutting, perforating, bending, coating, or packing begins.

Q2: What should ceiling fabrication drawings include?

A2: They should include layout, panel sizes, fixing method, trims, cutouts, access panels, finish references, labels, and special production notes.

Q3: Why are drawings important for custom metal ceiling panels?

A3: Custom parts have tighter cost and lead-time risks. Clear drawings reduce wrong sizes, finish mismatch, poor access, and installation improvisation.
